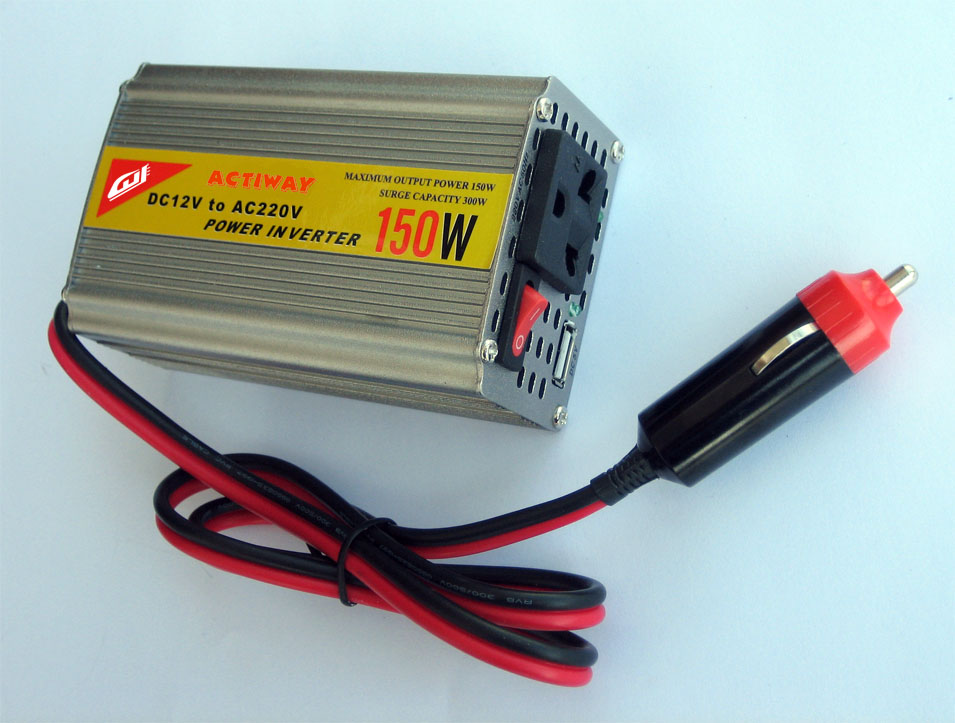

WS-PI150 ( Click for Large Photo )

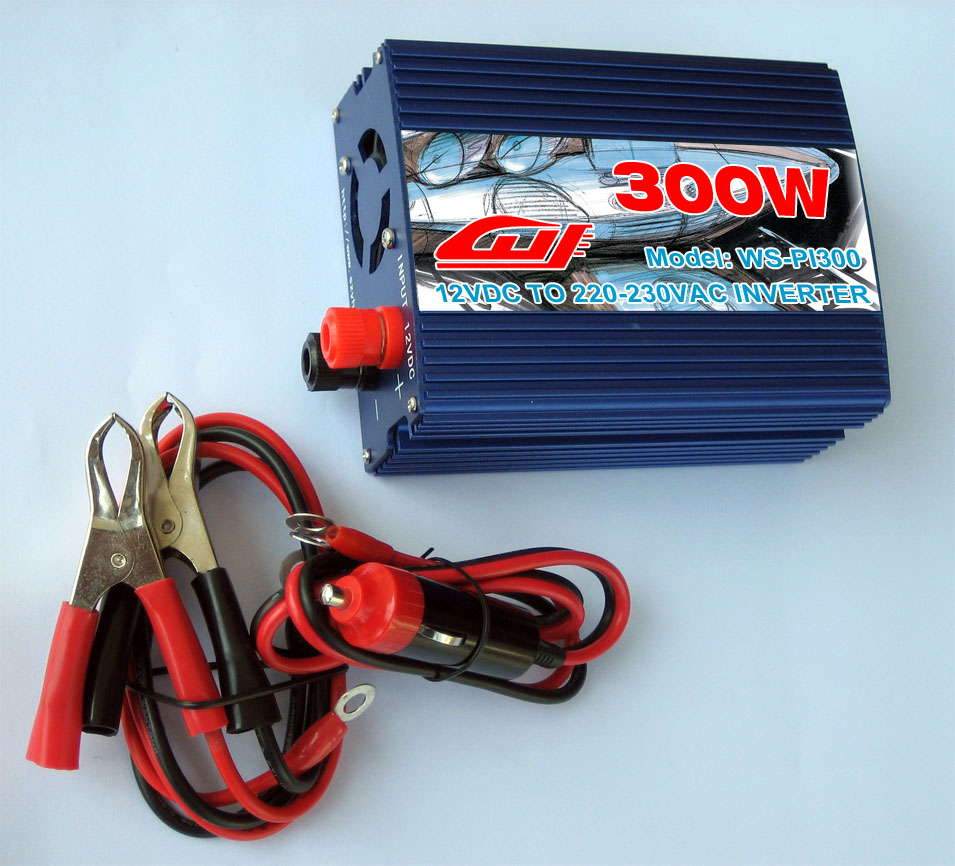

WS-PI300 ( Click for Large Photo )
  Description   性能简介
High efficiency 转换效率高
Quickly Response 启动快
Strong load compatiblity & stablity 负载适应性与稳定性强
Over-current & short-circuit protection 过流及短路保护，避免电器损坏
Built-in fuse 内置保险丝，安全可靠
Low voltage & overload protection 低电压和过载保护
Small profile, light weight, green sound 体积小、重量轻、环保无噪音
Suitable for 12V DC vehicle 适用于12V车载直流电源
Specifications WSD-PI140 WSE-PI140 参数规格
Input Voltage Range 10-15V DC 10-15V DC 输入电压范围
Output voltage AC 110V/60Hz AC 110V/60Hz 输出电压
Rated Power 140W 140W 额定功率
Peak Power 280W 280W 最大功率
Output wave form Modified sine wave Modified sine wave 输出波形
Converting efficiency >90% >90% 转换效率
No Load Current Draw <0.2A <0.2A 静态电流
Low Voltage Shut Down At 10.0V At 10.0V 低压关闭
Over Temperature Shut Down Yes, Automatic Yes, Automatic 过热自动保护
Overload Shut Down Yes, Automatic Yes, Automatic 超载自动保护
Temperature protection 80°C 80°C 高温保护
Fuse rating 25A 25A 保险丝规格
Input and output short-circuit protection Yes, Automatic Yes, Automatic 输入和输出短路保护
Dimention (L×W×H) 180x180x48 mm 180x180x48 mm 散热片规格(长×宽×高)
N.W./G.W. 0.85kg/1.05kg 0.85kg/1.05kg 净重/毛重

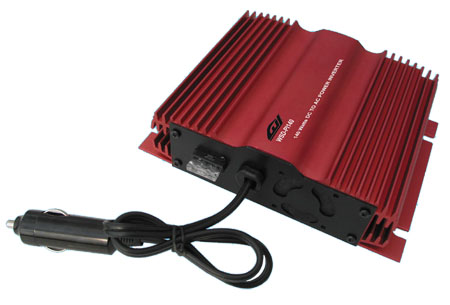

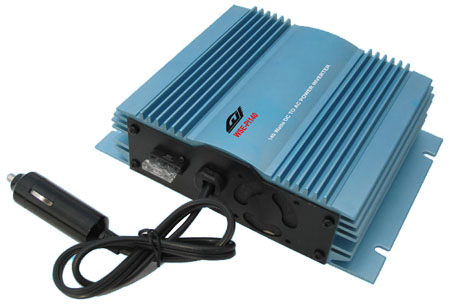

WSD-PI140 WSE-PI140
