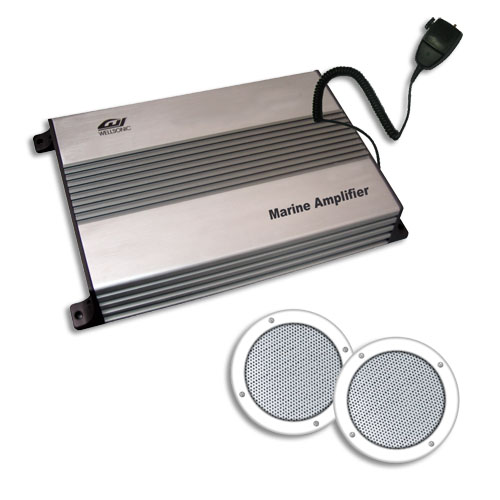

Marine Amplifier
Specifications   参数规格
Max power @ 4Ω 150W x 2 最大功率 @ 4Ω
RMS power @ 4Ω 100W x 2 有效功率 @ 4Ω
THD <0.03% 谐波失真率
Signal to noise ratio (A) >95dB 信噪比
Channel separation >65dB 分离度
Frequency Response (±1dB) 10Hz~38kHz 频响(±1dB)
Low pass crossover frequency 40Hz~400Hz 低通分音器频率
High pass crossover frequency 40Hz~400Hz 高通分音器频率
Bass boost 0~12dB 低音提升
Crossover slope 12dB 分音器斜度
High/low level input sensitivity 0.15-10V 高/低电平输入灵敏度
High/Low level input impedance 100Ω/20KΩ 高/低电平输入阻抗
Fuses rating 20A x 2 保险丝规格
Heatsink size (L×W×H) 332x250x50mm 散热片规格(长×宽×高)
G.W. / N.W. 2.5/2.0Kg 毛重/净重
PCS/Carton 4 台/箱
  Description
Waterproof PCB design
High efficiency MOSFET power supply
Heavy duty heatsink
Oversized capacitor tanks
Custom terminal block and gold plated RCA jacks
High/low level inputs
Adjustable input gain control
High/lowpass electronic X-overs with adjustable frequency
Adjustable Bass Boost
Soft delayed remote turn-on/off circuity
Fully 2Ω stable stereo operation
Bridgeable
Simultaneous mono/stereo operation capability
Short circuit/thermal/DC offset protection
Line out jacks
Power/Protect LED indicators

  性能简介
独特的PCB防水设计
高效MOSFET场效应管电源供给
超强高效散热片
大容量电容
镀金RCA插座及贯通端子
高/低电平输入
输入音量调节
频率可调低通/高通电子分音器
低音提升连续可调
遥控延迟软开/关机线路
2Ω负载稳定的立体声工作
可桥接
可同时单声/立体声工作
短路/过热/超载/直流电压偏移保护
线路输出插座
电源/故障指示灯
